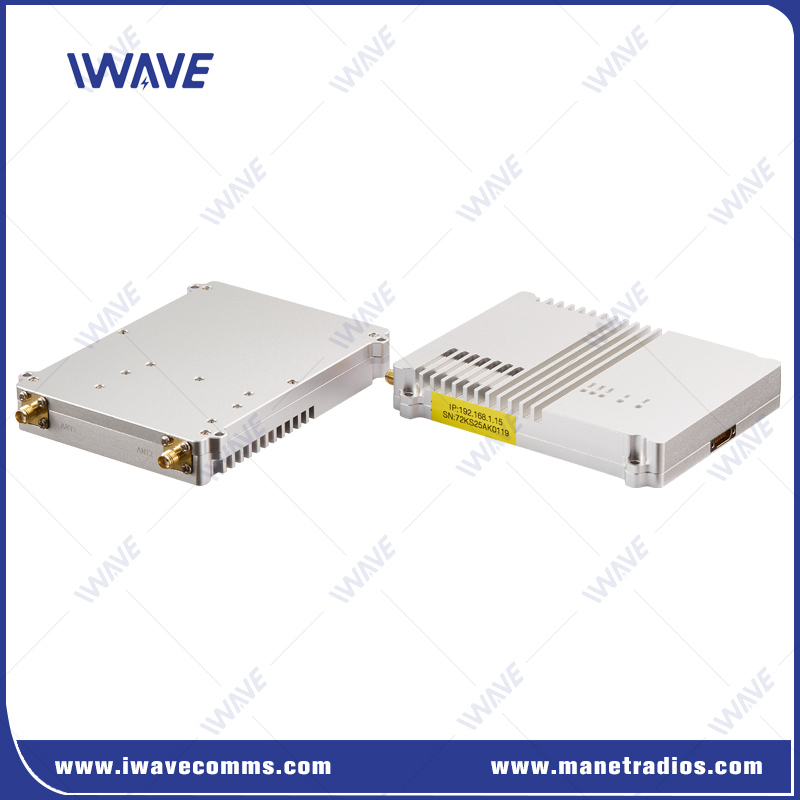

UGV Wireless Communication Link NLOS 3KM FHSS UHF and L Band

• Dual-band support: Supports both 600 MHz and 1.4 GHz frequency bands, easily switching via software to adapt to diverse communication environments.
• Up to 100 Mbps data rate: Provides ultra-high bandwidth of 100 Mbps in both uplink and downlink, ensuring real-time transmission of high-definition video and data.
• Powerful non-line-of-sight (NLOS) capabilities: Supports ground-to-ground communication from 500 meters to 3 kilometers, ensuring stable communication even in the presence of obstacles.
• Supports up to 64 nodes: Supports up to 64 nodes in a network, making the system scalable and adaptable to large-scale deployments.
• 2x2 MIMO technology: 2x2 MIMO technology improves data rates and connection stability, enhancing long-distance communication capabilities.
• FHSS (Frequency Hopping Sequence) function: Automatic frequency hopping effectively avoids interference sources, ensuring stable wireless communication.
• Adjustable Power Range: Supports adjustable power from 2W to 5W, allowing users to adjust signal strength and optimize power consumption based on actual needs.
• High Compatibility: Supports standard Ethernet and serial communication interfaces, compatible with a wide range of devices, and easily integrated into existing unmanned systems.
• Low-Latency Communication: Provides air interface latency of less than 30 milliseconds, ensuring uninterrupted real-time video and data transmission.
• Powerful Network Management: Through the web UI and management software, users can monitor and configure each node in the network and obtain real-time signal quality and link status information.

Q1: What types of communications does the FDM-6823UG support?
A1: The FDM-6823UG supports wireless transmission of high-definition video, data, and serial control signals, and is widely used in unmanned ground vehicles, robotics, and other fields.

Q2: How do I switch frequency bands?
A2: Users can select either the 600 MHz or 1.4 GHz frequency band through simple software configuration, allowing for flexible switching to meet different application requirements.

Q3: How is the FDM-6823UG's interference immunity?
A3: The FDM-6823UG uses frequency hopping sequence (FHSS) technology, combined with 2x2 MIMO technology, to automatically avoid interference in crowded environments, ensuring a stable communication link.

Q4: What communication protocols does the FDM-6823UG support?
A4: The FDM-6823UG supports multiple protocols, including Ethernet, TCP, UDP, MQTT, and Modbus, enabling easy integration into various control and data transmission systems.

Q5: How many nodes does each network support?
A5: The FDM-6823UG supports up to 64 nodes, making it suitable for large-scale network deployment and expansion.
