| ชื่อแบรนด์: | IWAVE |
| เลขรุ่น: | FDM-6800 |
| ขั้นต่ำ: | 2units |
| ราคา: | โปร่ง |
| ระยะเวลาการจัดส่ง: | 5-8working days |
| เงื่อนไขการจ่ายเงิน: | T/T,L/C |
UHF UGV Data Link With AES Encryption Low Latency Video And Telemetry Data
Introduction
FDM-6800 arranges video and telemetry and control channels for small drones and robots in unstable radio signal conditions.
FDM-6800 is based on enhanced ptmp wireless network technology for Tactical SDR For Mobile Robotics. A secure and powerful SDR platform for mobile robotics with unique multi-band, multi-waveform capabilities.
The combat-proven tactical radio is designed for versatility in a wide range of missions and operational environments, providing robust communication capabilities and extended network coverage across the complex environment.
The system offers wide frequency coverage across UHF bands and L-band, providing unprecedented immunity to interference, exceptional information security. Integrated service options can support simultaneous high-quality IP data, telemetry and mavlink data and hd video communication in a single network. Dedicated interfaces for video and data ensure smooth integration with the third party unmanned platform.
Key Features
|
Advanced UGV Datalink System – High-Performance Wireless Control Key Features & Technical Advantages: 1.Enhanced Connectivity ●2×2 MIMO technology delivers robust signal stability in dynamic environments ●5W high-power output enables long-range operation (1-3km NLOS) with superior penetration 2.Military-Grade Security ●AES128 encrypted links prevent interception and unauthorized access ●Advanced anti-jamming with 300+ hops/sec frequency hopping 3.High-Speed Data Transmission ●100-120Mbps throughput supports real-time HD video streaming ●Adaptive bandwidth allocation optimizes data flow 4.Scalable Network Architecture ●Supports 64-node mesh networks with flexible P2P/P2MP configurations ●Intelligent relay capability extends operational range 5.Compact Battlefield Solution ●Ultra-lightweight design (281g) with minimal footprint (12.7×9.4×1.8cm) ●Software-selectable dual-band (600MHz/1.4GHz) for mission adaptability |
|
|
Auto Frequency hopping and Field-switchable Between 600MHz and 1.4GHz The FDM-6800 is a Software-Defined Radio (SDR) and built on IWAVE's Switchable Frequency Architecture. This design allows users to select a suitable band between L-band and UHF band. Band 1.4G: 1420-1530Mhz and UHF: 566-678Mhz
|
Advanced Anti-Jamming Technology with Intelligent FHSS
Smart Frequency Hopping for Unbreakable Connections
The FDM-6800 series implements cutting-edge Adaptive Frequency Hopping Spread Spectrum (FHSS) technology with proprietary AI algorithms. Our system continuously monitors link quality in real-time using:
●RSRP (Received Signal Strength)
●SNR (Signal-to-Noise Ratio)
●SER (Symbol Error Rate)
Key Advantages:
●Intelligent Channel Assessment - Automatically selects optimal frequencies only when needed
●Context-Aware Hopping - Maintains stable connections by avoiding unnecessary jumps
●High Grade Reliability - 300+ hops/second capability for ECM environments
|
Easy Network Management Simplify control with iWAVE’s intuitive management software—monitor nodes, track real-time topology, and optimize performance effortlessly. ✔ Live network insights: View dynamic SNR, RSSI, and node distances Smart, scalable, and easy to manage—power your network with precision. |
Application
|
iWAVE's UGV datalink enables secure, long-range communication between unmanned ground vehicles (UGVs) and control stations. Perfect for: ✔ Military & Defense – Remote convoy operations & autonomous missions |
|
Specification
|
General |
Wireless |
||
| Technology | Star Network based on IWAVE proprietary time slot frame structure & waveform. | Communication | 1T1R1T2R2T2R |
| Encryption | ZUC/SNOW3G/AES(128) Optional Layer-2 | Data Link | Full duplex communication |
| Data Rate | Max 100Mbps(Uplink and Downlink) | Up and Down Ratio | 2D3U/3D2U/4D1U/1D4U |
| Range | 200mw RF Power: 20km(Air to ground) | Auto Reconnection | Automatic link re-establishment after link failure/ re-deploy the network after a link failure |
| Capacity | 64nodes | Sensitivity | |
| MIMO | 2x2 MIMO | 1.4GHZ | 20MHZ |
| Power | 23dBm±2 (2w, 5w or 10w on request) | 10MHZ | |
| Latency | End to end≤5ms-15ms | 5MHZ | |
| Modulation | QPSK, 16QAM, 64QAM | 600MHZ | 20MHZ |
| Anti-jam | FHSS(Frequency Hop Spread Spectrum) | 10MHZ | |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz | 5MHZ | |
| Power Consumption | 5Watts |
Dual Frequency Band |
|
| Power Input | DC5-32V | 1.4Ghz | 1420Mhz-1530MHz |

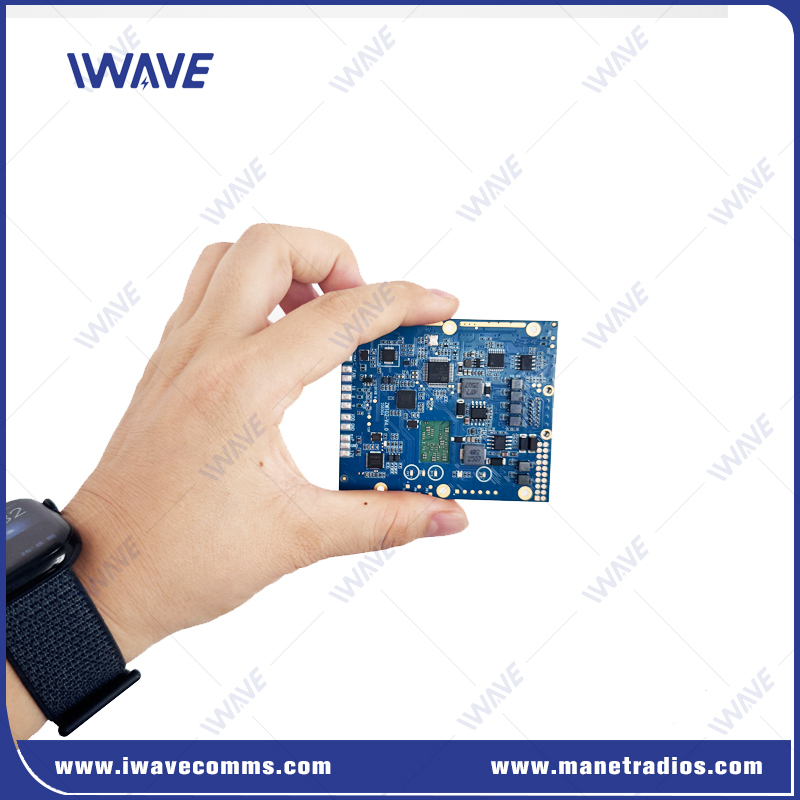

| Dimension and Weight | 71*60*10mm/33g | 600Mhz | 566Mhz-678Mhz |
